Peb aluminium scaffold Deck muaj peb qhov dav dav hooks uas plam hla cov yeeb nkab kab rov tav ntawm koj cov qauv scaffolding. Cov aluminium scaffold lawj / planks tau sib sau ua ke sai thiab yooj yim thauj.
Topstar All-Aluminium scaffold decks muaj zog dua thiab firmer stance dua li ntoo plank, tsis tau nws muaj tsawg flex thiab yog sib zog. Tsim los rau kev siv sab nraum zoov, lub platform no ua haujlwm nrog tus qauv lossis arched ncej thiab Peev xwm: 75 lbs. ib sq. ft. muab qhov chaw ua haujlwm ruaj khov rau saum koj cov qauv scaffolding. Cov phiaj no tuaj yeem siv tau rau hauv kev txhawb nqa lossis tshem tawm scaffolding systems.
|
Aluminium Scaffold Deck |
|
|
Khoom siv: |
Aluminium Alloy 6082-T6/6063-T5/6061-T6 |
|
Style |
Neeg Asmeskas |
|
Loj |
480 * 76 hli |
|
Muaj peev xwm |
75 lbs / sq |
|
Thauj khoom |
uniform loading: 2300 lbs |
|
Kev kho deg: |
Tsis-skid nto |
|
Muaj Qhov Loj |
||||
|
Dav (inch) |
Ntev (inch) |
Ntev (mm) |
Qhov hnyav (kgs) |
Qhov hnyav (kgss) |
|
19-1/4" |
10' |
3 048mm |
17.75 Kg |
39.13 lbs ib |
|
19-1/4" |
8' |
2 438.4mm |
14.54 Kg |
32.05 Ib |
|
19-1/4" |
7' |
2 133.6mm |
12, 94 kwg |
28.53 Ib |
|
19-1/4" |
6' |
18 28,8mm |
11.34 Kg |
25. 00lbs |
|
19-1/4" |
5'2" |
1 572mm |
10. 00 kgs |
22.05 Ib |

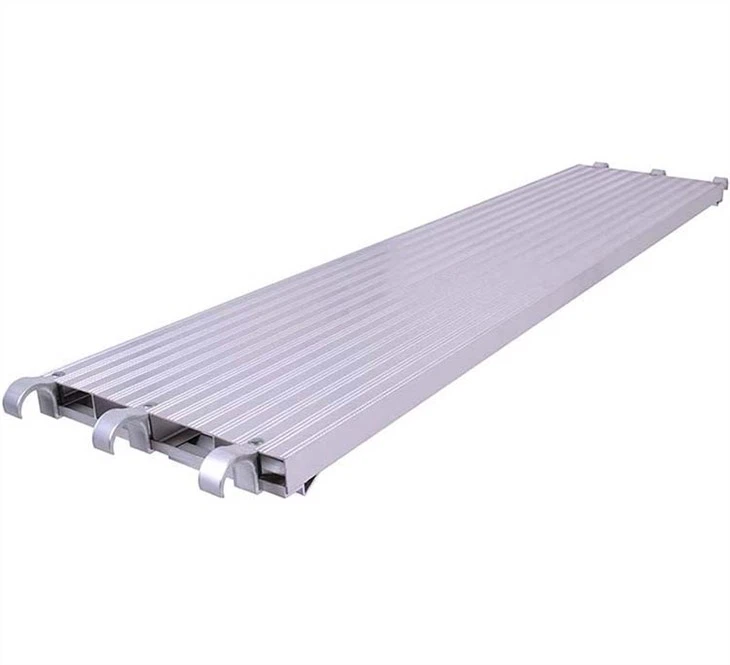

1. Qhov no aluminium scaffold taug kev plank, uas yog ua los ntawm txhuas, nta peb dav hloov hooks.
2. Hauv qab lub rooj tsav xwm scaffold, aluminium trusses nce lub peev xwm siab tshaj plaws rau 75 lbs ib ko taw.
3. Cua latches muaj nrog rau kev taug kev plank.
4. Lub scaffold board sab saum toj yog ua kom muaj kev tuav tau tshaj plaws.
5. Aluminium scaffold boards yog sib dua li hlau planks hauv qhov hnyav.
6. 75 phaus ib square feet hnyav luag hauj lwm ntsuam xyuas.
Q1.Dab tsi yog qhov dav tsawg kawg nkaus ntawm plank?
Q2.Dab tsi yog qhov kam rau ntawm qhov dav?
Qhov kev kam rau siab ntawm qhov dav ntawm lub Scaffold Plank yuav tsum yog −0, ntxiv rau 5mm.
Q3.Dab tsi yog qhov ua haujlwm load txwv?
Q5.Yuav ua li cas hom plank koj tsim?
1.Steel board tsis muaj nuv
2.Steel Catwalk (nrog nuv)
3. Plywood plank
4.Aluminium plank
Cim npe nrov: aluminium scaffold lawj
