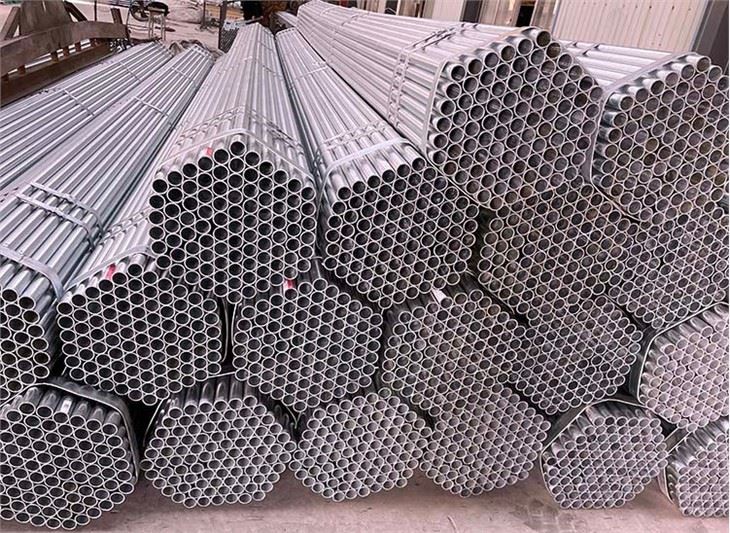

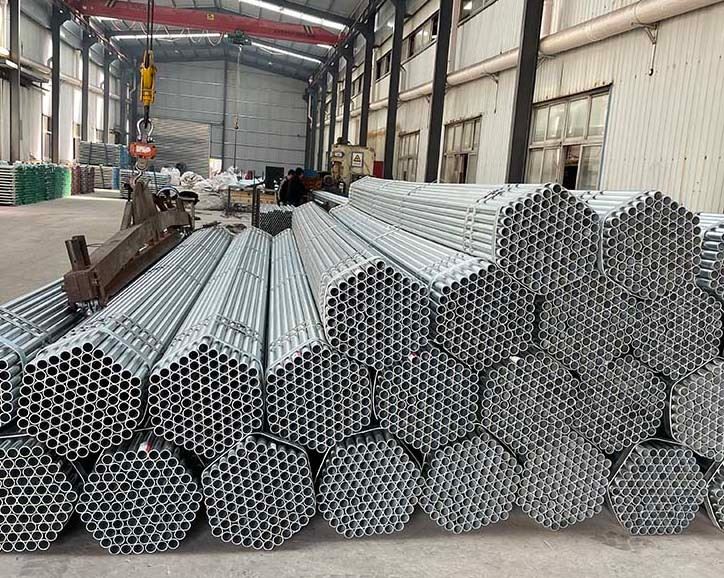

Topstar Scaffolding lub tuam txhab muab kub dip galvanized scaffolding yeeb nkab uas nruj me ntsis ua raws li BS1139, JIS G3444 thiab kev nyab xeeb. Galvanized scaffolding yeeb nkab yog ua los ntawm Q235, Q345, Q355B cov khoom siv nrog tuab 3.0-4.0mm.Scaffolding yeeb nkab feem ntau yog kub dip galvanized thiab txuas nrog scaffold couplers.Kuj siv tau raws li tus qauv ringlock, ringlock ledger, ncej lub ntsiab raj thiab lwm yam.Tubes yuav tsum tshwm ncaj visually thiab tsis deviate los ntawm ntau tshaj 15mm nyob rau hauv tej 3m ntev.
|
Cov khoom ntawmGalvanzied Scaffolding yeeb nkab |
|
|
Sab nraud txoj kab uas hla: |
42 hli; 48.3 hli; 48.6 hli; 60.3 hli |
|
Thickness: |
1. 8-4 0mm |
|
Steel Qib: |
Q235, Q345, STK400, STK500, S235JR, S275JR |
|
Txheem: |
BS1139; BS EN39-2001;JIS G3444-2004 |
|
Nto: |
Kub Dip Galvanized; Pre-galvanized; Dub, Xim; Xov |
|
Muaj Qhov Loj |
||
|
Sab nraud txoj kab uas hla (mm) |
Phab ntsa Thickness (mm) |
Ntev (m) |
|
48.3-48.6 |
1.8-2.5 |
0.3-12 |
|
48.3-48.6 |
2.75 |
0.3-12 |
|
48.3-48.6 |
3 |
0.3-12 |
|
48.3-48.6 |
3.2 |
0.3-12 |
|
48.3-48.6 |
3.6 |
0.3-12 |
|
48.3-48.6 |
3.8 |
0.3-12 |
|
48.3-48.6 |
4 |
0.3-12 |
|
42.3 |
2.0-4.0 |
0.3-12 |
|
60.3 |
2.0-4.0 |
0.3-12 |
1.Lub galvanized nto yog uniform; lub adhesion yog muaj zog; qhov corrosion kuj ntawm cov yeeb nkab steel yog txhim khu kev qha thiab kev pab cuam lub neej ntev.
2.Qhov kev siv tshuab yog meticulous, qhov kawg txiav yog du, zoo nkauj thiab huv si
3. raw cov ntaub ntawv los ntawm cov lag luam loj, cov yeeb nkab zoo yog lav
4.Lub sijhawm luv luv 10-15 hnub rau ntau pua tons.
5. Galvanized 30-50μm (210g-350g / m2)
* roj & roj
* kev tsim kho
* petrochemical
* hiav txwv
* Rwb thaiv tsev
Topstar Scaffolding tau koom nrog scaffolding project rooj plaub hauv Nyab Laj, Philippines, Singapore, Malaysia, UAE thiab lwm lub tebchaws.
Vietnam : TPSK/PTSC Vung Tau A1 Olefins Plant
Steel Planks 250 * 50 * 1.2 nrog ntev ntawm 1m mus rau 4m 150 tons.
Kub Dip Galvanized kav 48.3 * 3.2 * 6000mm 100 tons
BS1139 txuas 50 tons.
Nyab Laj: LNG THI VAI 1MMTPA-Cold Insulation
Scaffolding yeeb nkab: 48.3 * 3.2 * 6000mm 300 tons
BS1139 txuas 50 tons
Cov ntaiv: 300 * 6000mm 1000 pcs
Singapore: Afton Chemicals Expansion Project
Scaffolding planks 240 * 45 * 1.2mm nrog ntev ntawm 1m mus rau 3m 100 tons;
Kub Dip Galvanized steel yeeb nkab 48.6 * 2.4 * 6000mm 200 tons;
JIS Couplers 100 tons
United Arab Emirates: Gulf Arena Kev Tsim Kho Cov Haujlwm
Steel Board 225 * 38 * 1.5mm nrog ntev 1m, 2m thiab 3m tag nrho 200 tons.
Base Jack thiab Uhead 38 * 600mm 100 tons
Q1.Dab tsi kam rau koj ua rau scaffoding yeeb nkab?
Thickness ntxiv rau -0.1 hli tau tso cai .thiab qhov hnyav siab nyob ib puag ncig ntxiv rau -5 feem pua
Q2. Ntev npaum li cas kub dip galvanized yeeb nkab kom rustless?
Nws tuaj yeem kav ntev li 10 xyoo kom tsis muaj xeb hauv qab yog tias tsis brased
Q3.Yuav ua li cas yog zinc thickness ntawm HDG yeeb nkab?
Zinc tsho tiv no feem ntau nyob ib ncig ntawm 30μm (210g / m2) Thiab peb tuaj yeem ua rau 50-80μm ntawm cov neeg siv khoom thov.
Q4.Howwe lav zoo ntawm cov yeeb nkab steel?
1.Tubes txiav los ntawm saw tuaj yeem tawm ntawm lawv nrog cov npoo ntse thiab txiav ntawm cov ces kaum. Tube yuav tsum tau txiav ntawm lub kaum sab xis thiab cov barbs tshem tawm.
2.Txhua lub raj xaim kawg yuav tsum tau txiav tsawg kawg 150mm dhau los ntawm kev sib cais thiab qhov kawg puas lawm scrapped
3.Tej raj nrog cov nplaim liab qab tsis tsuas yog cuam tshuam rau qhov kawg ntawm lub raj tab sis mus txog 600mm ntawm qhov ntev.
4.Overloaded raj tuaj yeem khoov. Tube tuaj yeem ncaj nraim siv cov cuab yeej tshwj xeeb lossis txiav cov seem uas puas lawm
Q5.Yuav ua li cas yog lub ntim ntawm scaffolding yeeb nkab?
OD 219mm thiab hauv qab no Hauv hexagonal seaworthy bundles ntim los ntawm steel strips, Nrog ob nylon slings rau txhua pob khoom 25 tons / thawv thiab 5 tons / loj rau kev txiav txim mus sib hais; Rau 20 "ntev qhov ntev max yog 5.8m; Rau 40" thawv qhov ntev max yog 11.8m.
Q6.Dab tsi lwm yam steel kav koj muab?
Cov yeeb nkab square, cov yeeb nkab plaub, cov yeeb nkab hollow, cov kav dej kub galvanized, cov kav dej dub.
Cim npe nrov: galvanized scaffolding yeeb nkab
